Automated Data Plotter

This application dynamically generates many types of graphs. These graphs are derived from processing of various data sources done by the IEM. Please feel free to use these generated graphics in whatever way you wish. Reset App. The IEM Explorer application offers a simplified frontend to some of these autoplots.


First, select a chart type::


Second, select specific chart options::

DescriptionValue
Select Station
First Threshold (F)
Second Threshold (F)
Third Threshold (F)
Fourth Threshold (F)
Potential (if data exists) minimum year
Potential (if data exists) exclusive maximum year
Image Pixel Size @100 DPI
Image Resolution (DPI) (max 500)
Select Output Format:

Plot Description:

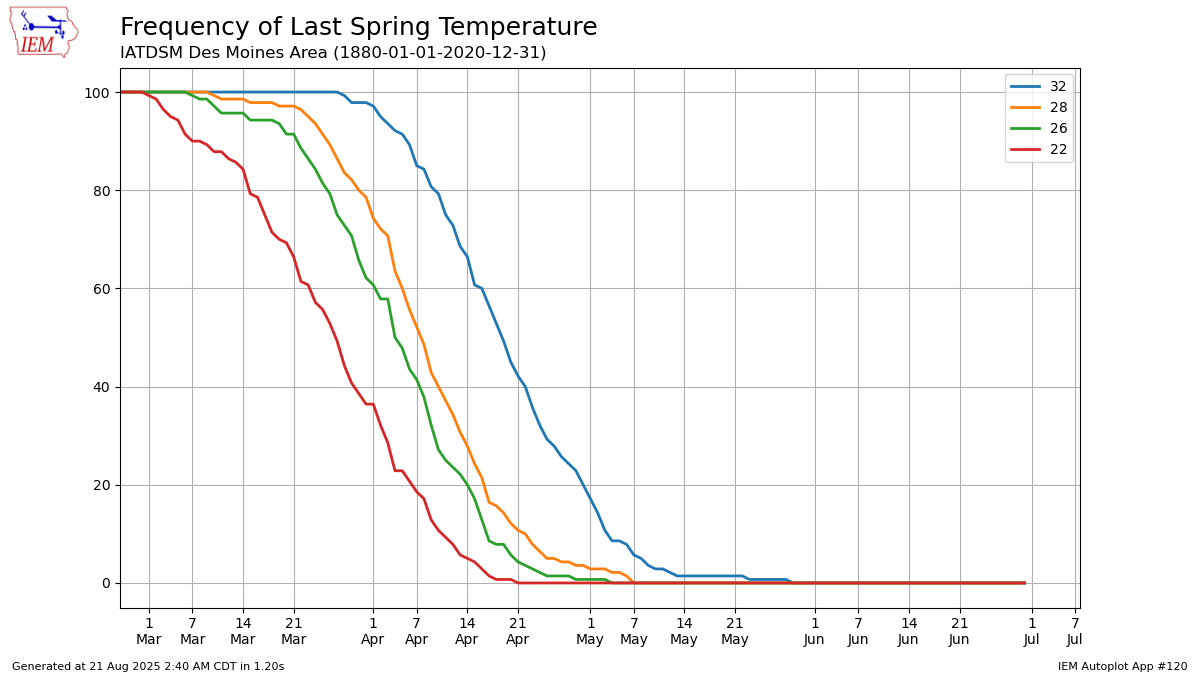

This chart presents the accumulated frequency of having the last spring temperature at or below a given threshold.

# IEM Climodat https://mesonet.agron.iastate.edu/climodat/
# Report Generated: 26 Nov 2022
# Climate Record: 1880-01-01 -> 2021-12-31
# Site Information: [IATDSM] Des Moines Area
# Contact Information: Daryl Herzmann akrherz@iastate.edu 515.294.5978
# Low Temperature exceedence probabilities
# (On a certain date, what is the chance a temperature below a certain
# threshold would be observed again that spring season)
 DOY Date    <33  <29  <27  <23
  30 Jan 30  100  100  100  100
  32 Feb 01  100  100  100  100
  34 Feb 03  100  100  100  100
  36 Feb 05  100  100  100  100
  38 Feb 07  100  100  100  100
  40 Feb 09  100  100  100  100
  42 Feb 11  100  100  100  100
  44 Feb 13  100  100  100  100
  46 Feb 15  100  100  100  100
  48 Feb 17  100  100  100  100
  50 Feb 19  100  100  100  100
  52 Feb 21  100  100  100  100
  54 Feb 23  100  100  100  100
  56 Feb 25  100  100  100  100
  58 Feb 27  100  100  100  100
  60 Feb 29  100  100  100  100
  62 Mar 02  100  100  100   98
  64 Mar 04  100  100  100   95
  66 Mar 06  100  100  100   91
  68 Mar 08  100  100   98   90
  70 Mar 10  100   99   97   87
  72 Mar 12  100   98   95   86
  74 Mar 14  100   98   95   84
  76 Mar 16  100   97   94   78
  78 Mar 18  100   97   94   71
  80 Mar 20  100   97   91   69
  82 Mar 22  100   96   88   61
  84 Mar 24  100   93   84   57
  86 Mar 26  100   89   79   53
  88 Mar 28   99   83   73   44
  90 Mar 30   97   80   65   39
  92 Apr 01   97   73   60   36
  94 Apr 03   93   70   57   28
  96 Apr 05   91   59   47   22
  98 Apr 07   85   51   41   18
 100 Apr 09   80   42   31   12
 102 Apr 11   75   36   24    9
 104 Apr 13   68   30   21    5
 106 Apr 15   60   24   17    4
 108 Apr 17   56   16    8    1
 110 Apr 19   49   14    7    0
 112 Apr 21   42   10    4    0
 114 Apr 23   35    7    2    0
 116 Apr 25   29    4    1    0
 118 Apr 27   25    4    1    0
 120 Apr 29   22    3    0    0
 122 May 01   17    2    0    0
 124 May 03   10    2    0    0
 126 May 05    8    2    0    0
 128 May 07    5    0    0    0
 130 May 09    3    0    0    0
 132 May 11    2    0    0    0
 134 May 13    1    0    0    0
 136 May 15    1    0    0    0
 138 May 17    1    0    0    0
 140 May 19    1    0    0    0
 142 May 21    1    0    0    0
 144 May 23    0    0    0    0
 146 May 25    0    0    0    0
 148 May 27    0    0    0    0
 150 May 29    0    0    0    0
 152 May 31    0    0    0    0
 154 Jun 02    0    0    0    0
 156 Jun 04    0    0    0    0
 158 Jun 06    0    0    0    0
 160 Jun 08    0    0    0    0
 162 Jun 10    0    0    0    0
 164 Jun 12    0    0    0    0
 166 Jun 14    0    0    0    0
 168 Jun 16    0    0    0    0
 170 Jun 18    0    0    0    0
 172 Jun 20    0    0    0    0
 174 Jun 22    0    0    0    0
 176 Jun 24    0    0    0    0
 178 Jun 26    0    0    0    0
 180 Jun 28    0    0    0    0
 182 Jun 30    0    0    0    0
View Data (as csv)   Download as Excel
If you notice plotting issues with the image above, please do let us know by providing the URL address currently shown by your web browser.
