Automated Data Plotter
This application dynamically generates many types of graphs. These graphs are derived from processing of various data sources done by the IEM. Please feel free to use these generated graphics in whatever way you wish.
Second, select specific chart options::
Plot Description:This application has a considerable and likely confusing amount of configuration options. The biggest source of the confusion is the interplay between the statistic chosen and the dates/times provided. This table summarizes that interplay.
|Days Since||Start/End Date Time||This plots the number of "days" since the last issuance of a given headline between the start and end date times that you provide. The concept of "days" is 24 hour periods.|
|Last Year||Start/End Date Time||This plots the most recent year of issuance for a given warning type.|
|Most Frequent Hour||Start/End Date Time||This plots only works for UGC summarization. It attempts to plot the hour of the day with the most frequent number of events issued. Not that for long-fuse warnings, these type of plot is likely ill-defined.|

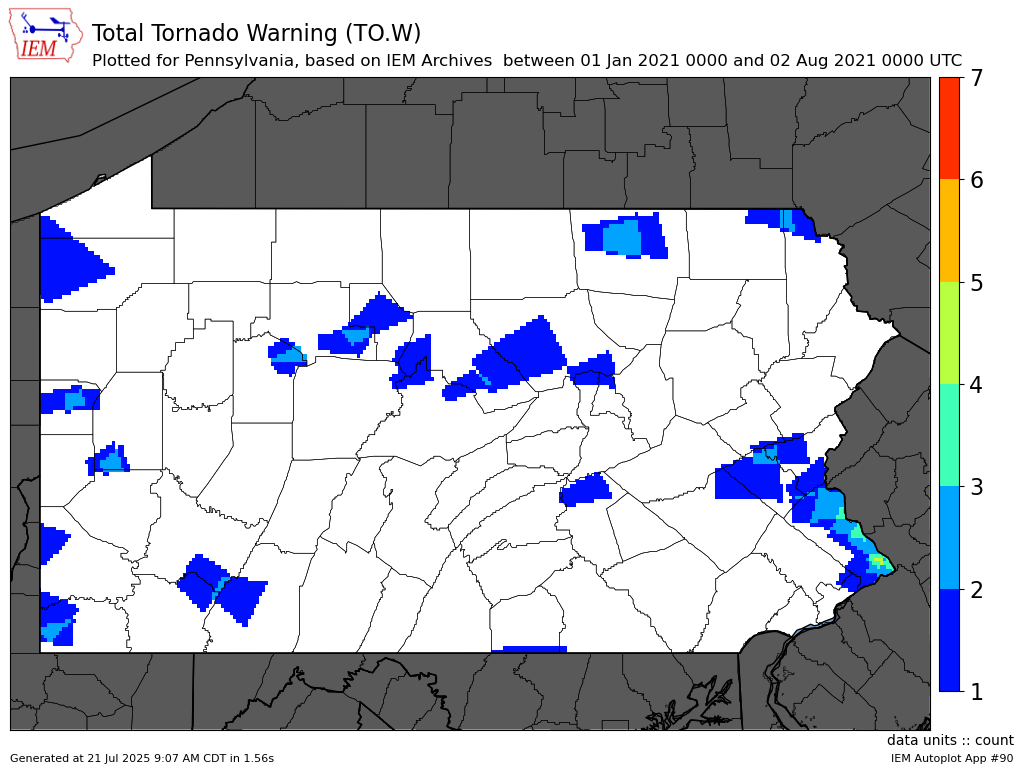

|Total Count||Start/End Date Time||This plots the total number of events between the start and end date time.|
|Year Average||Start/End Year||This plots the average number of events between the inclusive start and end year. The caveat is that it uses the actual found time domain of warnings within those years to compute a yearly average. So if you pick a year period between 2005 to 2010 and no warnings were issued in 2005, it would then use 2006 to 2010 to compute the yearly average.|
|Year Count||Start Year||This plots the number of events for a given year. A year is defined as the calendar year in US Central Time.|
|Yearly Min/Avg/Max Count bounded...||Start/End Date Time
|This plots the min/avg/max number of events per year between the given dates. For example, you could produce a plot of the average number of Tornado Warnings during June. Please note that only the average plot works when summarizing by polygons.|
In general, it will produce a map of either a single NWS Weather Forecast Office (WFO) or for a specified state. For warning types that are issued with polygons, you can optionally plot heatmaps of these products. Please be careful when selecting start and end dates to ensure you are getting the plot you want. There are likely some combinations here that will produce a broken image symbol. If you find such a case, please email us the link to this page that shows the broken image!
Storm Based Warning polygons were not official until 1 October 2007, so if you generate plots for years prior to this date, you may notice polygons well outside the County Warning Area bounds. There was no enforcement of these unofficial polygons to stay within CWA bounds.
This app can be very slow, so please let it grind away as sometimes it will take 3-5 minutes to generate a map :(
Based on a sampling of recent timings for this application, plot generation time has averaged 15 seconds. Hold on for the plot is generating now!
